Multi Turn Bevel Gearbox – Hand Wheel Operated

The Multi Turn Bevel Gearbox – Hand Wheel Operated from Relekon Automation is designed for smooth, reliable, and precise manual operation of multi-turn valves such as gate, globe, and sluice valves.

Engineered with a high-efficiency bevel gear mechanism, this gearbox enables effective torque transmission with reduced operating effort, ensuring dependable performance in demanding industrial applications.

Suitable for both rising stem and non-rising stem configurations, it is widely used in industries such as water treatment, oil & gas, power, and chemical processing.

Our Multi Turn Bevel Gearboxes – Hand Wheel Operated are engineered for precision, durability, and high performance, making them an ideal solution for reliable manual operation of industrial valves.

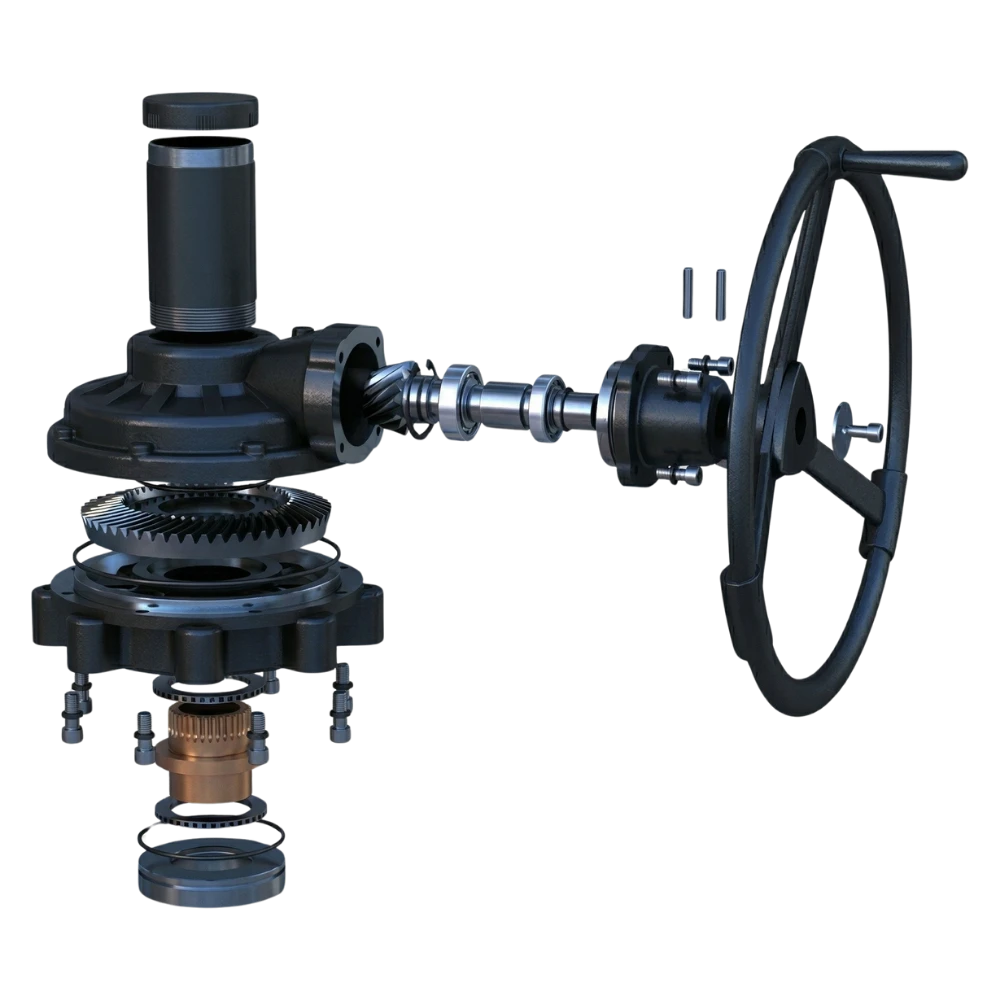

Multi-Turn-Bevel Gearbox–Hand Wheel-Operated-2

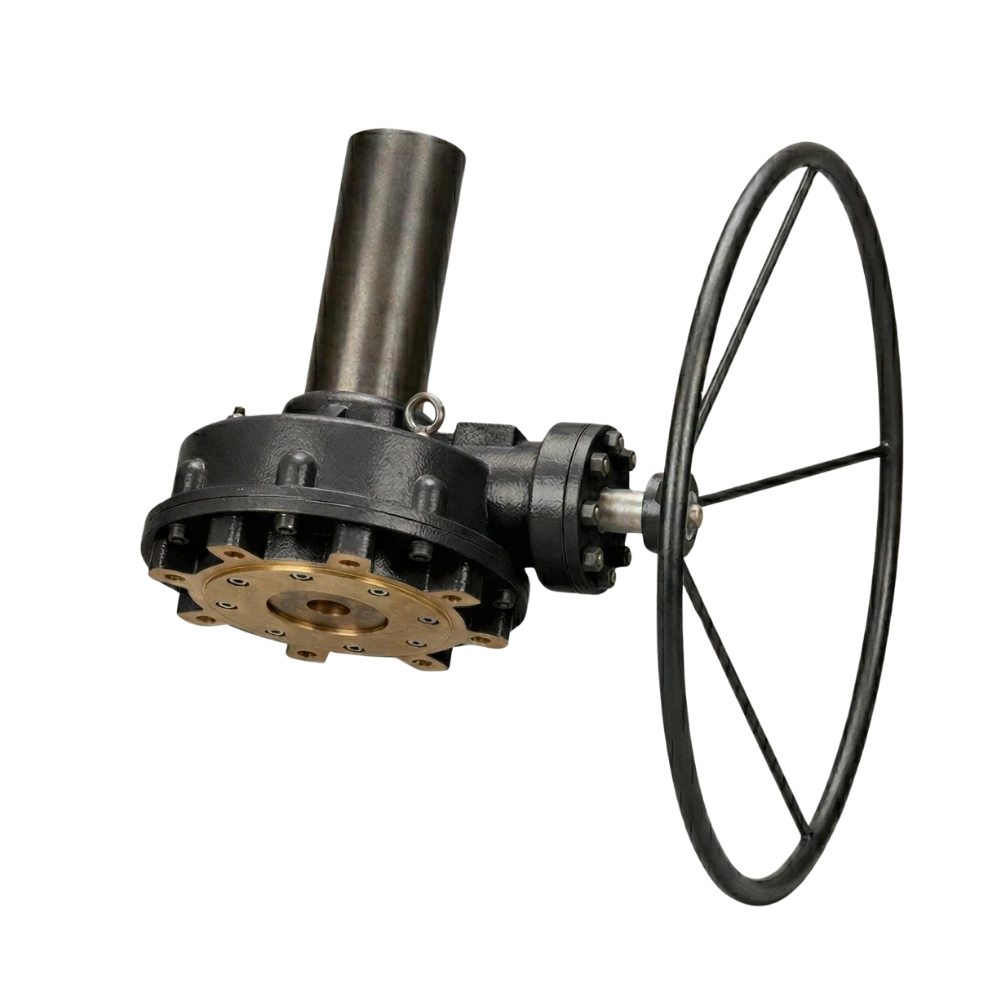

Multi-Turn-Bevel-Gearbox-Hand-Wheel-Operated-1

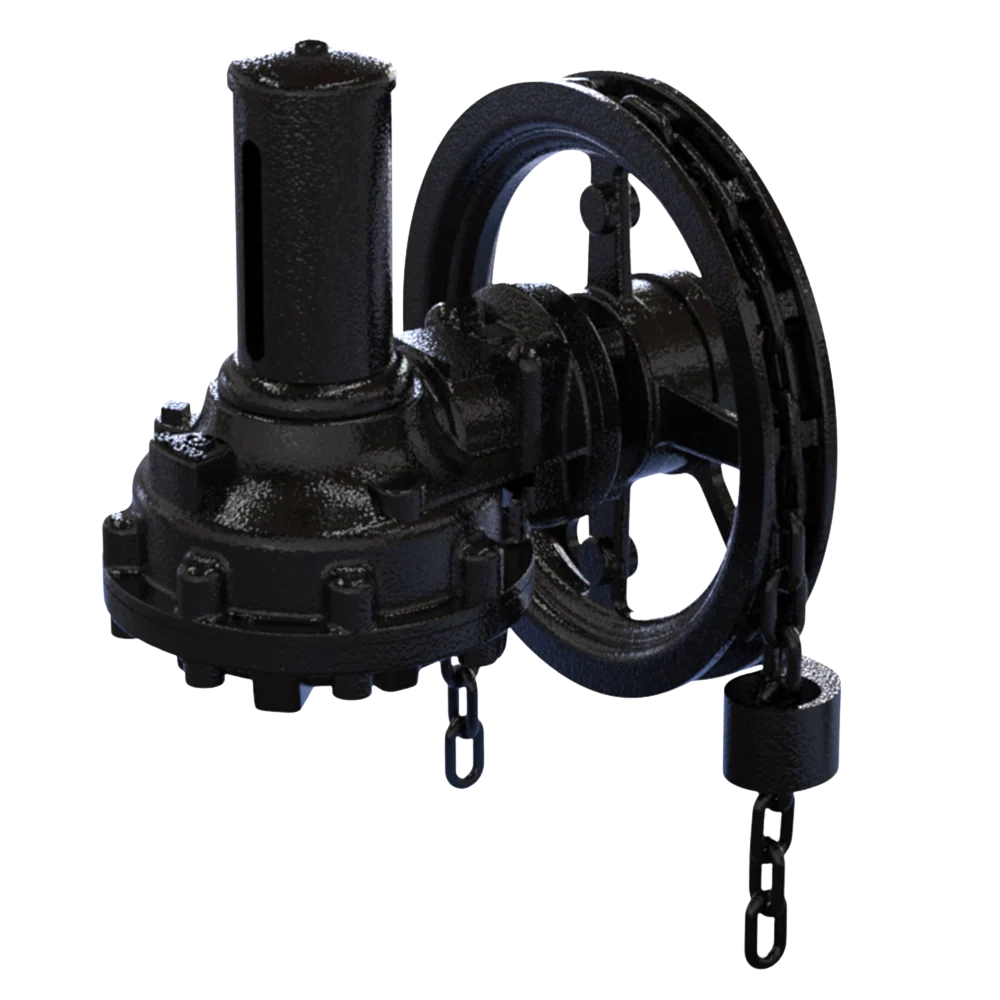

Multi-Turn-Bevel Gearbox – Hand Wheel-Operated-2-1

Selection Chart: Multi Turn Bevel Gearbox – Hand Wheel Operation (RA-B Series)

Model	Max Torque (Nm)	Max Torque (Lbf-Ft)	Ratio / M.A.	Max Thrust (kN)	Max Stem Ø	ISO 5211 Mounting	Handwheel Ø (mm)
RA – B250	250	150	2.8:1	54.0	30 mm	F10	Ø350
RA – B650	650	480	3.1:1	120	38 mm	F14	Ø400
RA – B950	950	700	3.5:1	121	45 mm	F14	Ø500
RA – B1900	1900	1401	3:1	145	57 mm	F16	Ø500
RA – B3800	3800	2803	3.2:1	210	63 mm	F16	Ø600
RA – B5500	5500	4056	3.9:1	267.5	70 mm	F25	Ø600
RA – B8500	8500	6270	3.8:1	307.5	90 mm	F30	Ø700
RA – B13000	13000	9590	4.7:1	450	100 mm	F35	Ø900
RA – B15000	15000	11065	4.3:1	550	130 mm	F40	Ø900

Technical Specifications

Parameter	Specification
Operation Type	Manual – Hand Wheel / Chain pulley mechanism
Rotation Type	Multi-Turn
Gear Mechanism	Bevel Gear
Direction of Operation	Clockwise / Counter-clockwise
Mounting	As per valve requirement / ISO
Gear Ratio	2:1 to 60:1
Torque Range	250 Nm to 15000 Nm
Housing Material	SG Iron
Stem Nut Material	SGI / Bronze / Aluminum Bronze / Brass / Gun Metal
Surface Finish	Red Oxide / Powder Coated
Protection	Weather Resistant

Torque Range

Key Features

High-efficiency bevel gear transmission
Smooth and precise multi-turn operation
Heavy-duty construction for high torque applications
Low hand-wheel operating effort
Powder-coated body for corrosion resistance
Long service life with minimal maintenance
Suitable for rising & non-rising stem valves

Lubrication

Optional Accessories

Position Indicator
Chain Wheel Operation
Locking Arrangement
Limit Switch Provision
Extended Stem
Special Coating / Painting
Custom Mounting Flange

Environmental Conditions

Parameter	Rating
Ambient Temperature	-10°C to +80°C
High Temperature Option	Up to 200°C
Low Temperature Option	Up to -40°C
Protection	Weatherproof
Corrosion Protection	Epoxy / Powder Coating
Installation	Indoor / Outdoor

Applications

Gate Valves
Globe Valves
Knife Edge Gate Valve
Sluice Valves
Water Treatment Plants
Oil & Gas Pipelines
Power Plants
Chemical & Process Industries
Infrastructure & Irrigation Projects
